Functions Overview:

• 12+1 independently controlled high intensity LED segments creating pseudo-spherical surface illuminate the specimen from all directions without producing shades

• Diffusers of LED segments minimize production of reflections

• 6 tilting arms provide convenient handling of a sample as well as the possibility to adjust precisely the angle of light incident on a sample from all directions

• Single button press switches on / off the whole upper and lower ring formed by LED segments

• Rotation of the preset combination of lit / switched off LED segments clockwise and counterclockwise

• Constant color temperature at the whole illumination range

• Low power consumption, lifetime over 20 000 hours. Compatible Microscopes:

• Stereomicroscopes with objective diameter up to 69mm


Lenses with diameter up to 69 mm can go through the upper opening of the illuminator. In such case, there are two important parameters of the lens, which need to be considered:

  • WD – Working Distance
  • LL – Length of the Lens

In order to be able to focus the microscope without a need to lift up the specimen or to open the arms of the illuminator, the following criterion should be accomplished:


WD + LL > 133 mm

(That means, that the sum of Working Distance of the lens and Length of the Lens needs to be higher than is the height of the illuminator.)

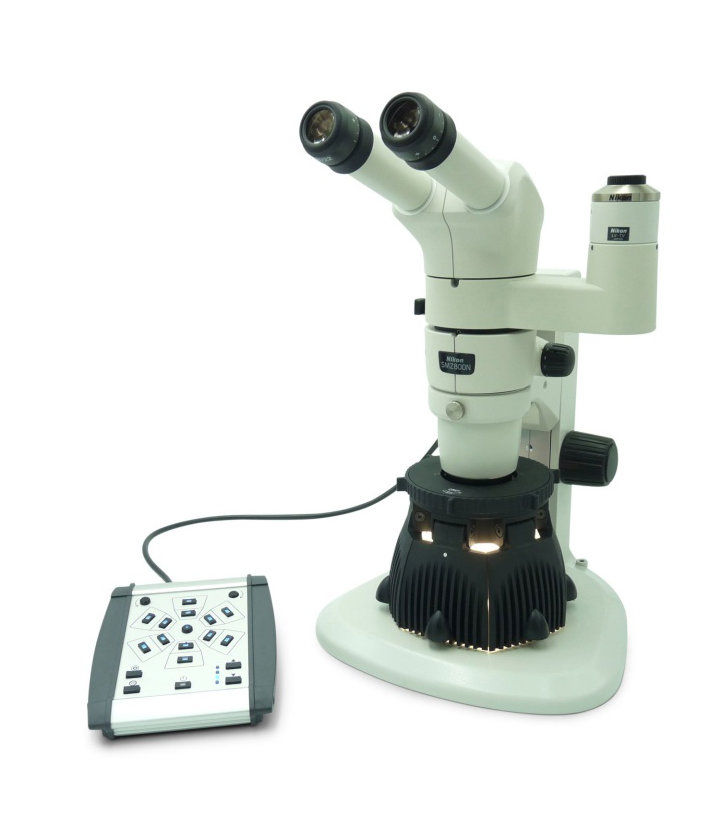

Universal Multi-Segment Diffuse LED Illuminator for Stereomicroscopes

SKU: E61MPR252
